Lab 4 - Networking

Lab Objectives:

  1. Demonstrate the ability to Networks and Routers from the Horizon Web Interface

Login as student

  1. Login using the credentials created in the previous lab

Add a Private Network

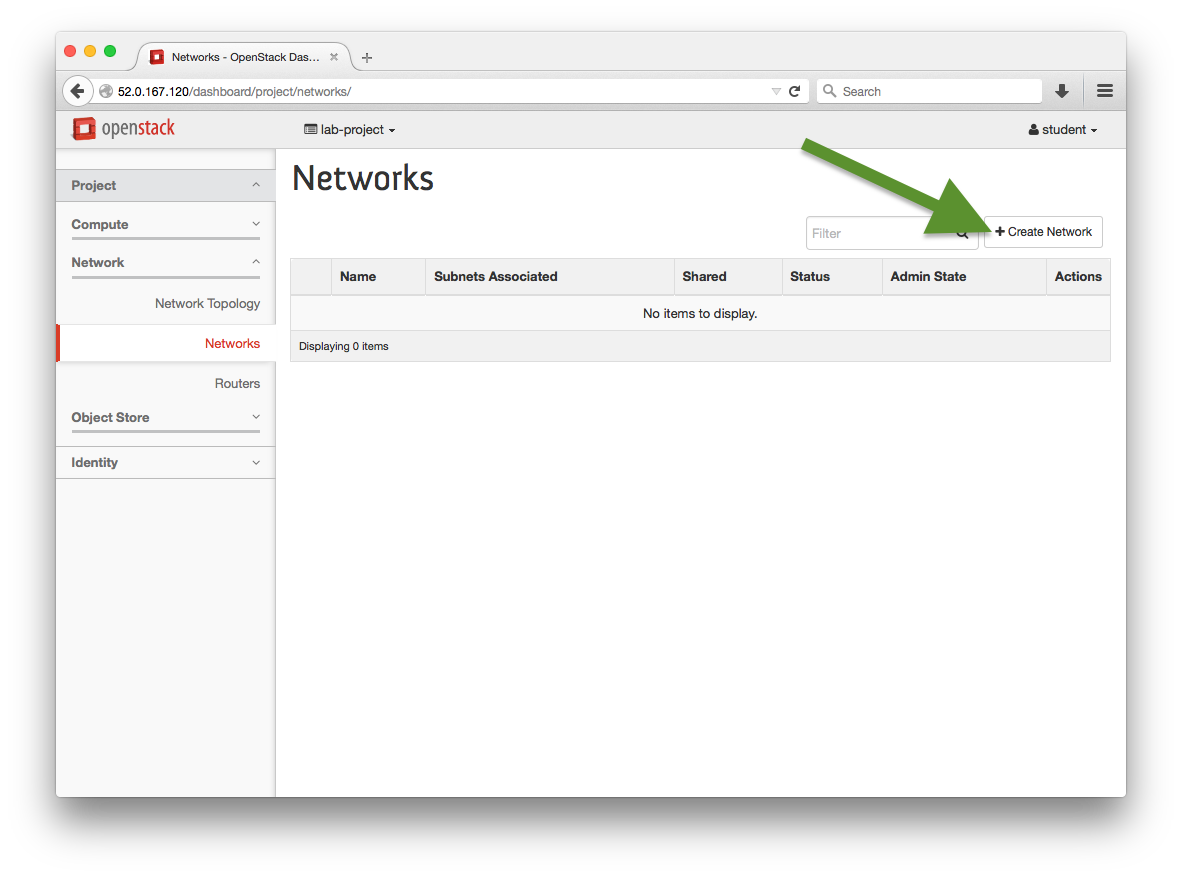

  1. Navigate to: Project > Network > Networks > +Create Network

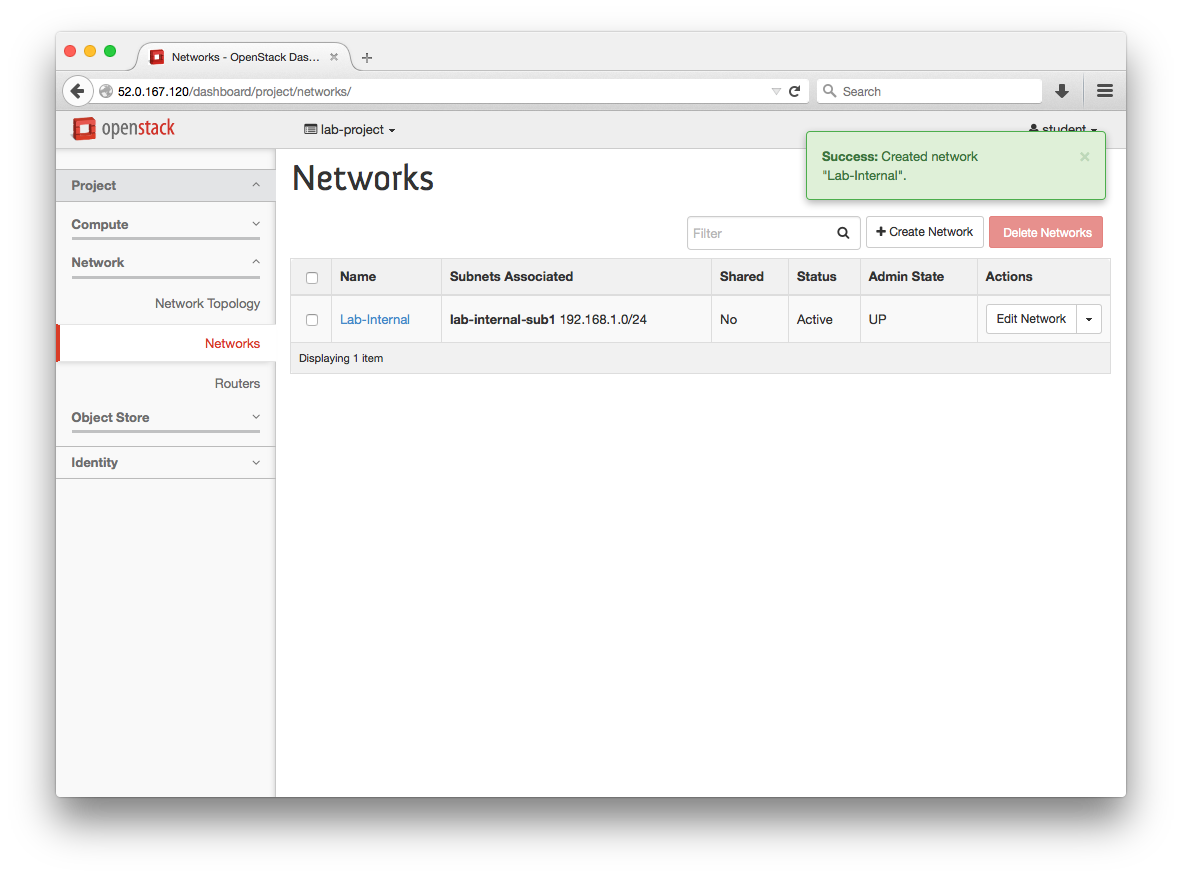

    :red_circle: TODO need a new screenshot showing 2 default shared networks? Create Network Create Network Create Network

    :white_check_mark: Additional Info:

    The Allocation Pools is the start,end addresses for the pools. The entry form for this field does not parse spaces. Example Pool: 192.168.1.100,192.168.1.120

    Create Network Create Network

Add a Router

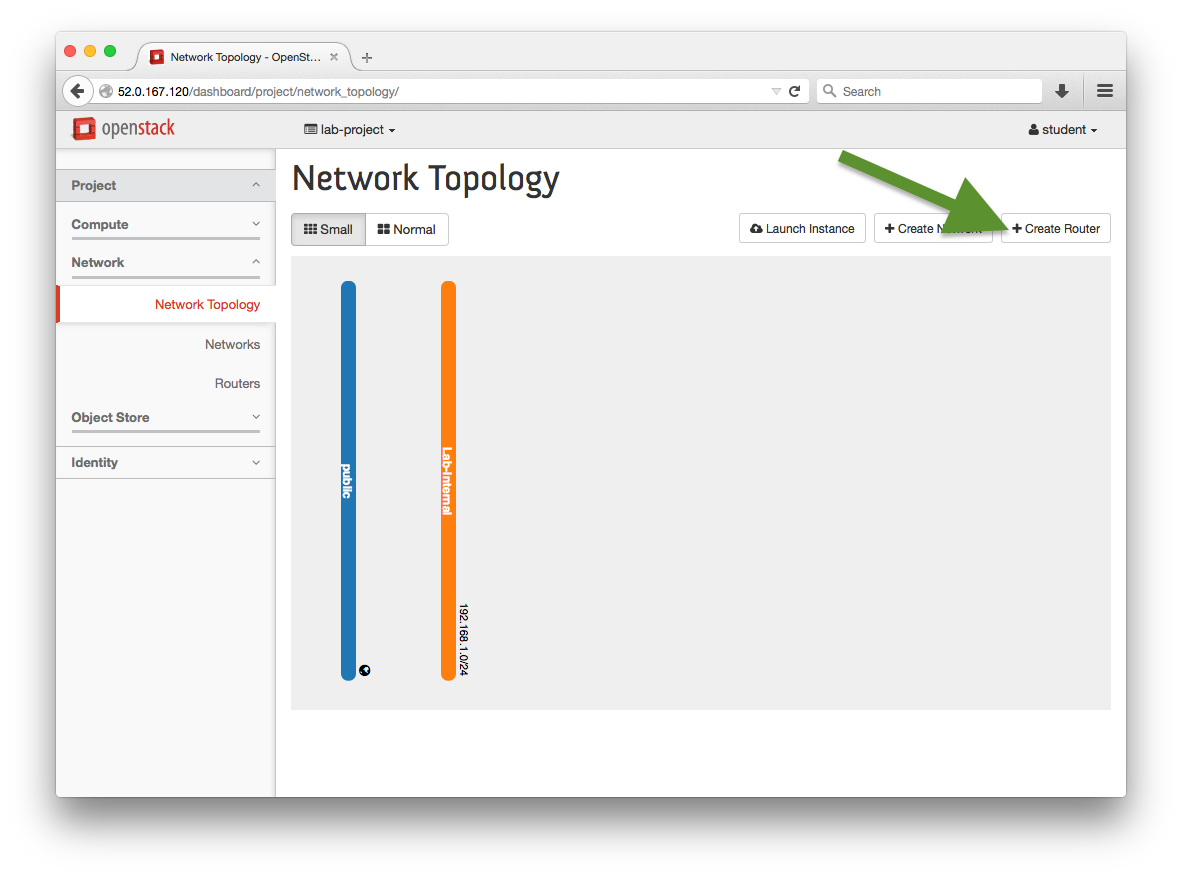

  1. Navigate to: Project > Network > Network Topology > +Create Router

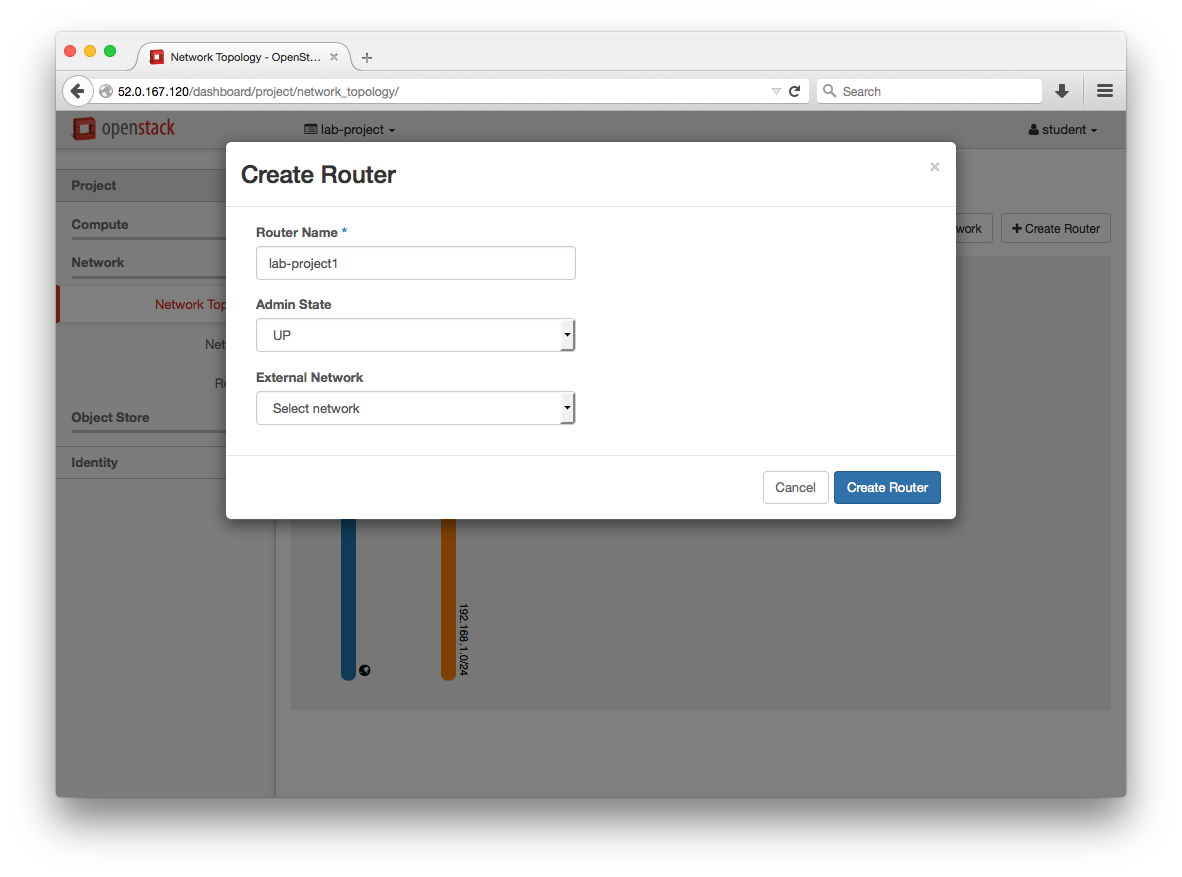

    Create Router Create Router

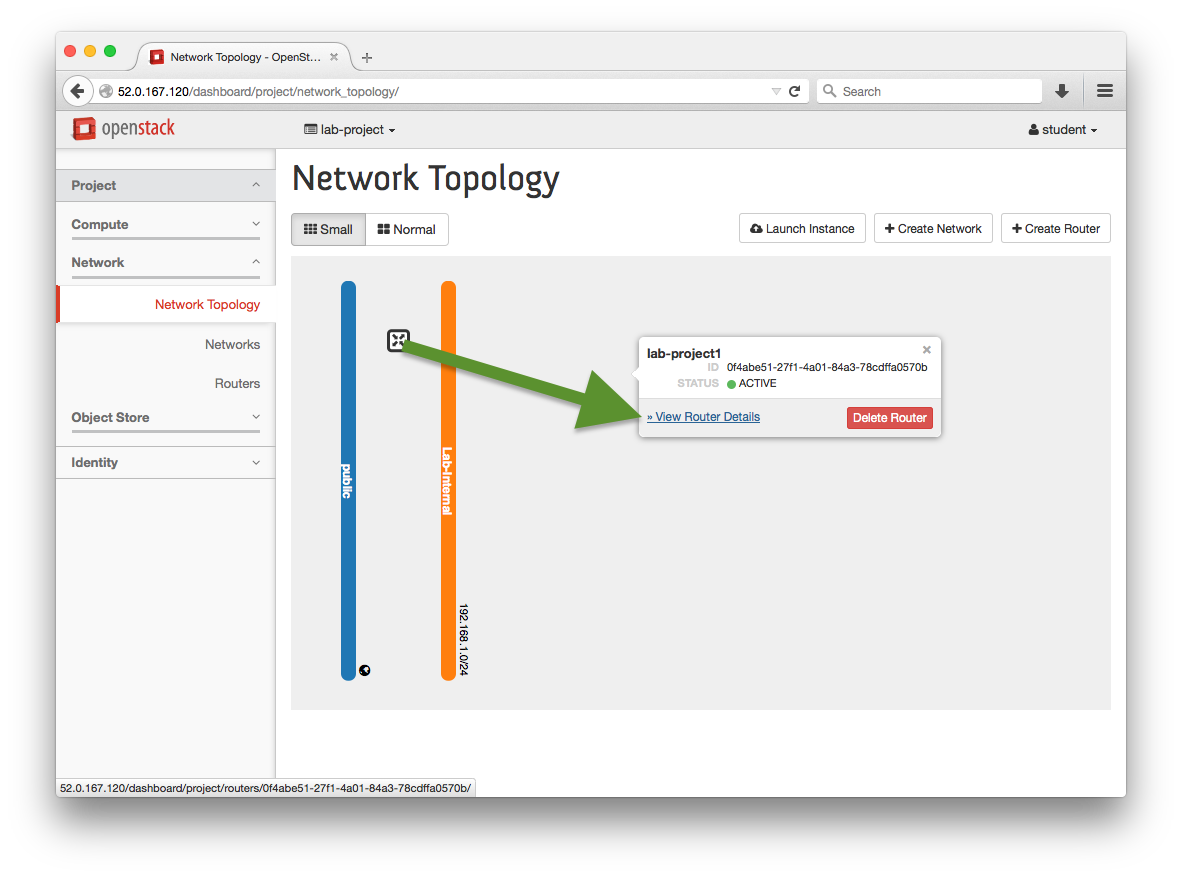

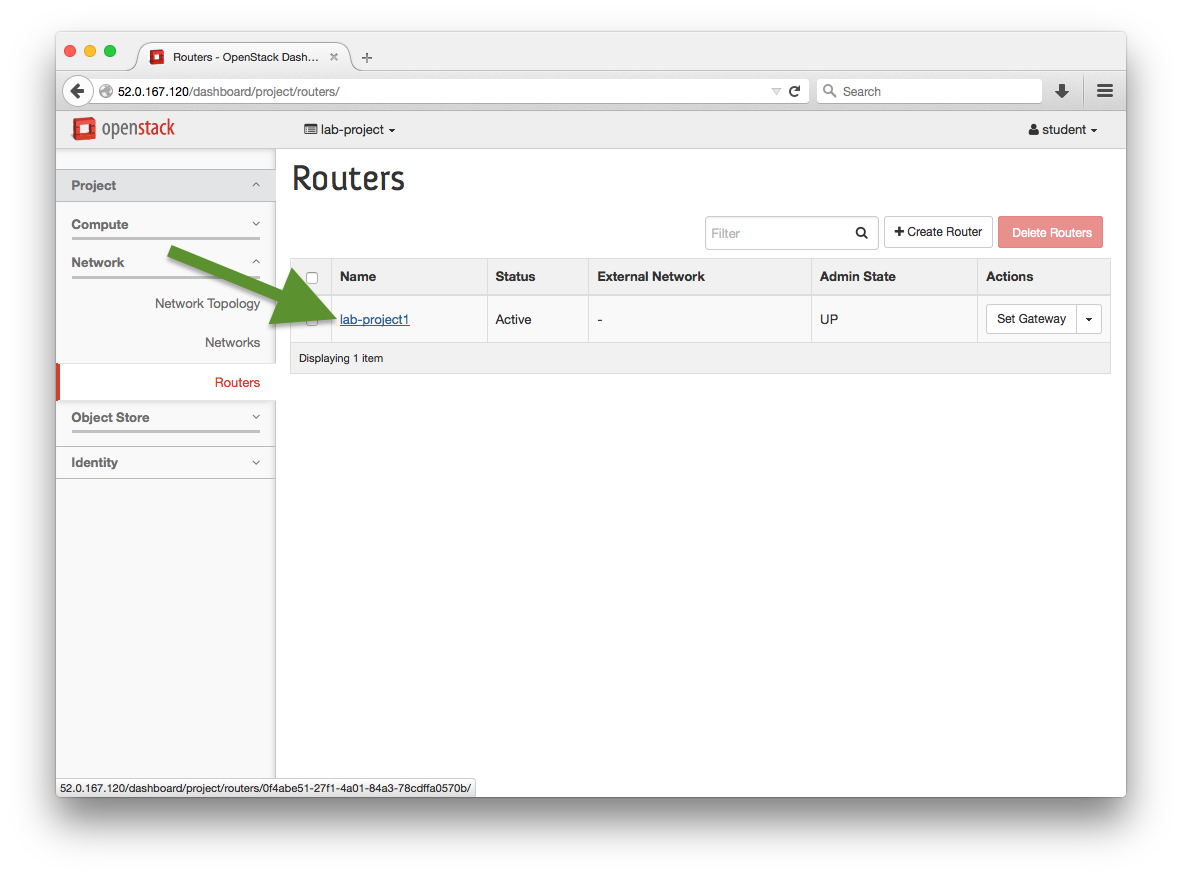

  2. Either click on “View Router Details” or choose our new router from the list on Project > Network > Routers

    Create Router Create Router

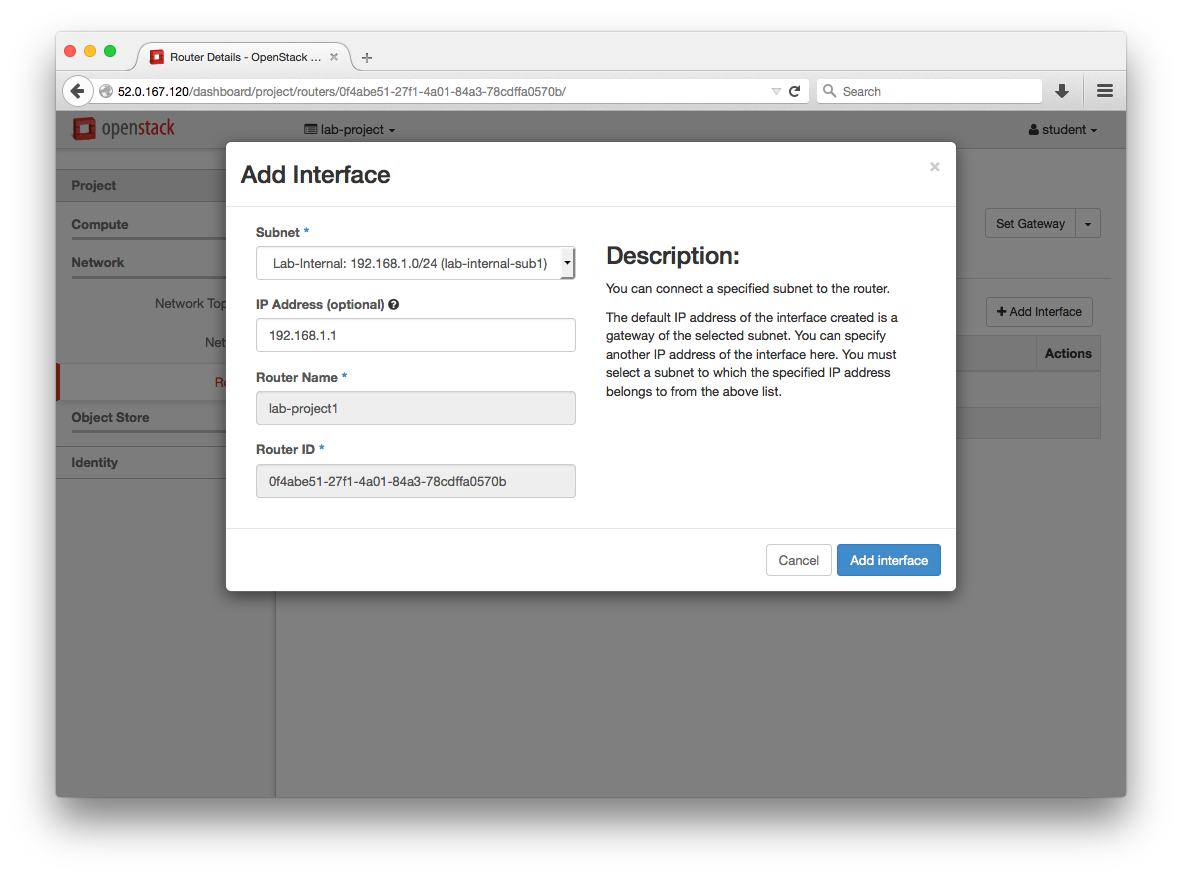

  3. Add an interface to the new router

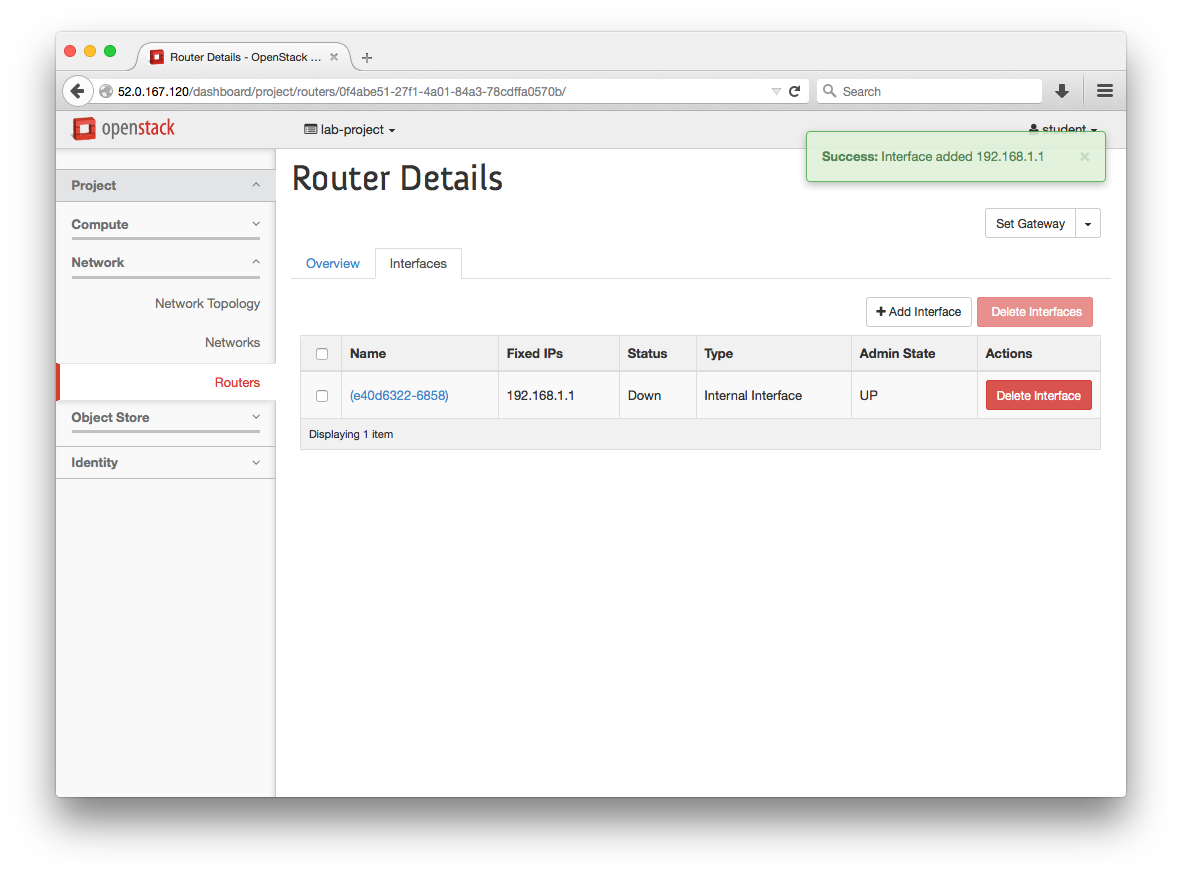

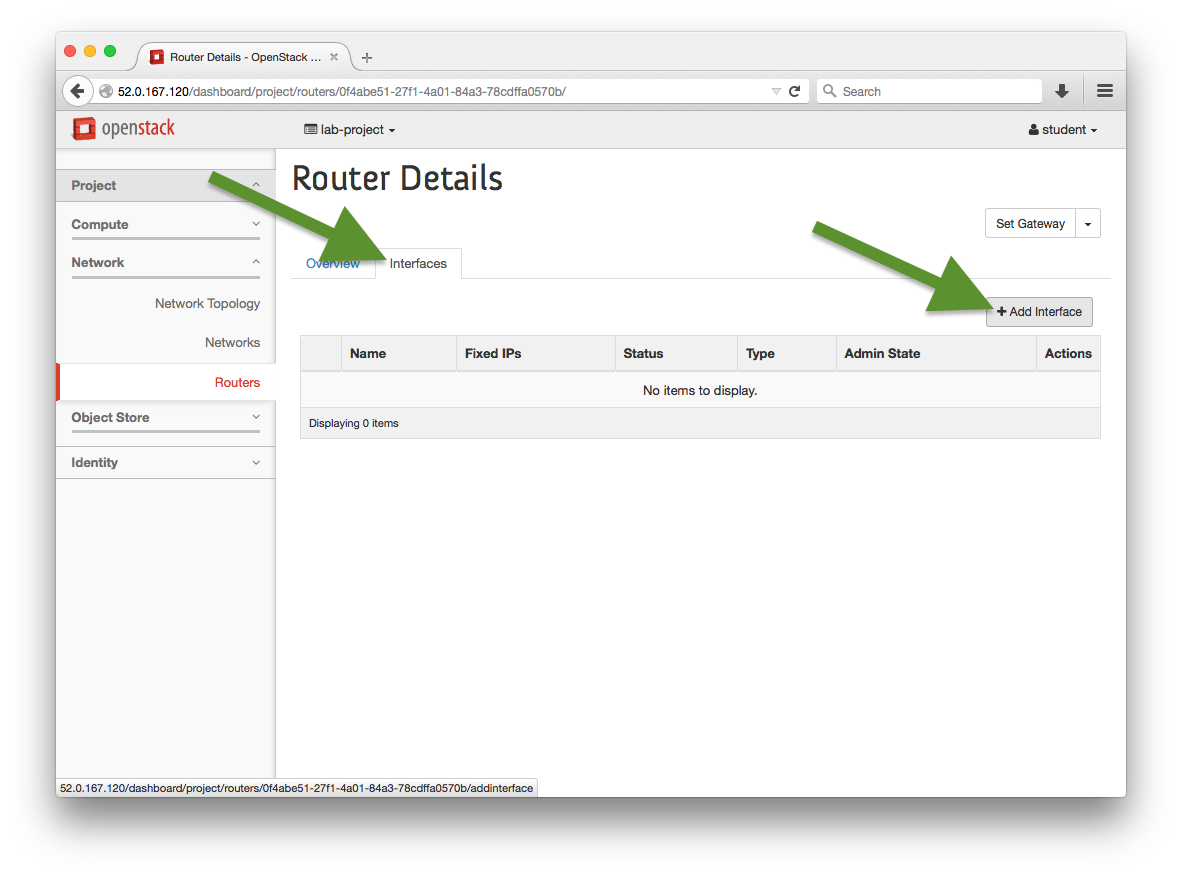

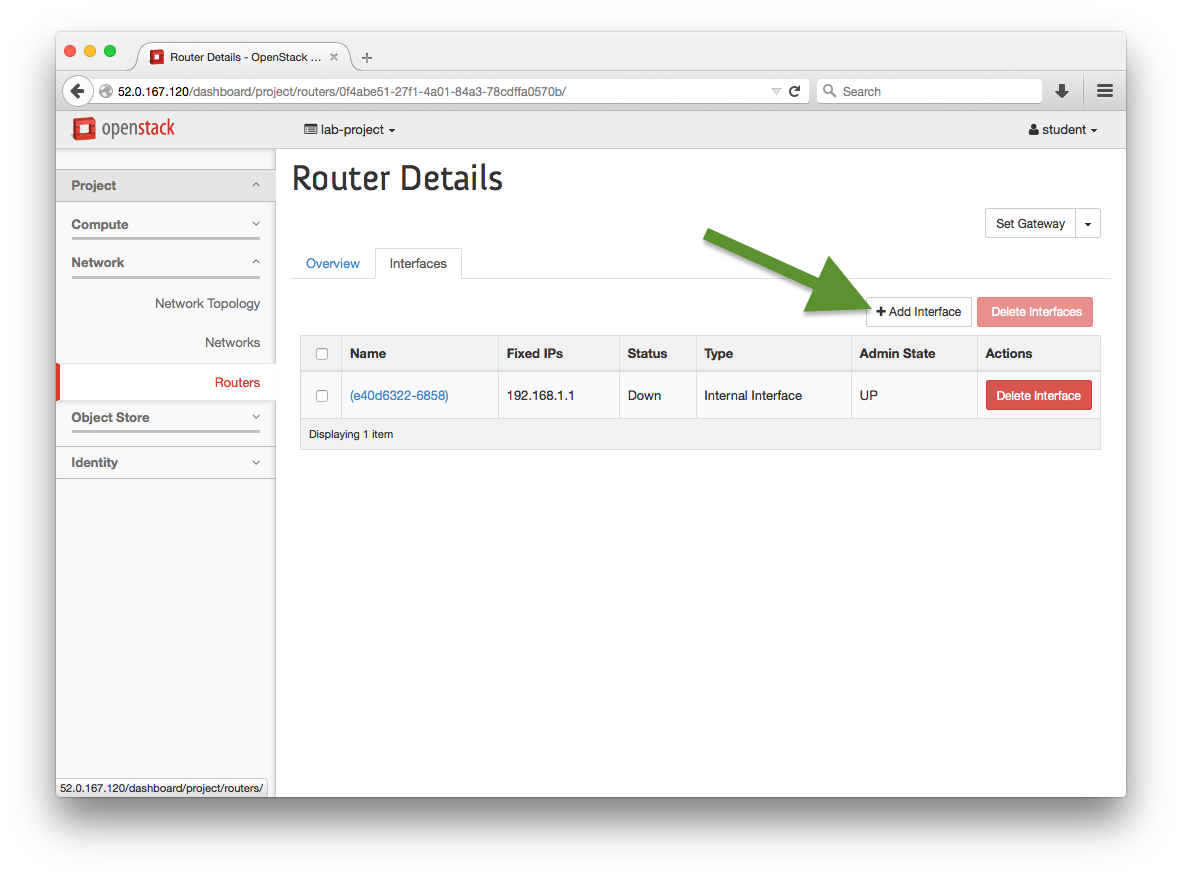

    Create Router Create Router Create Router

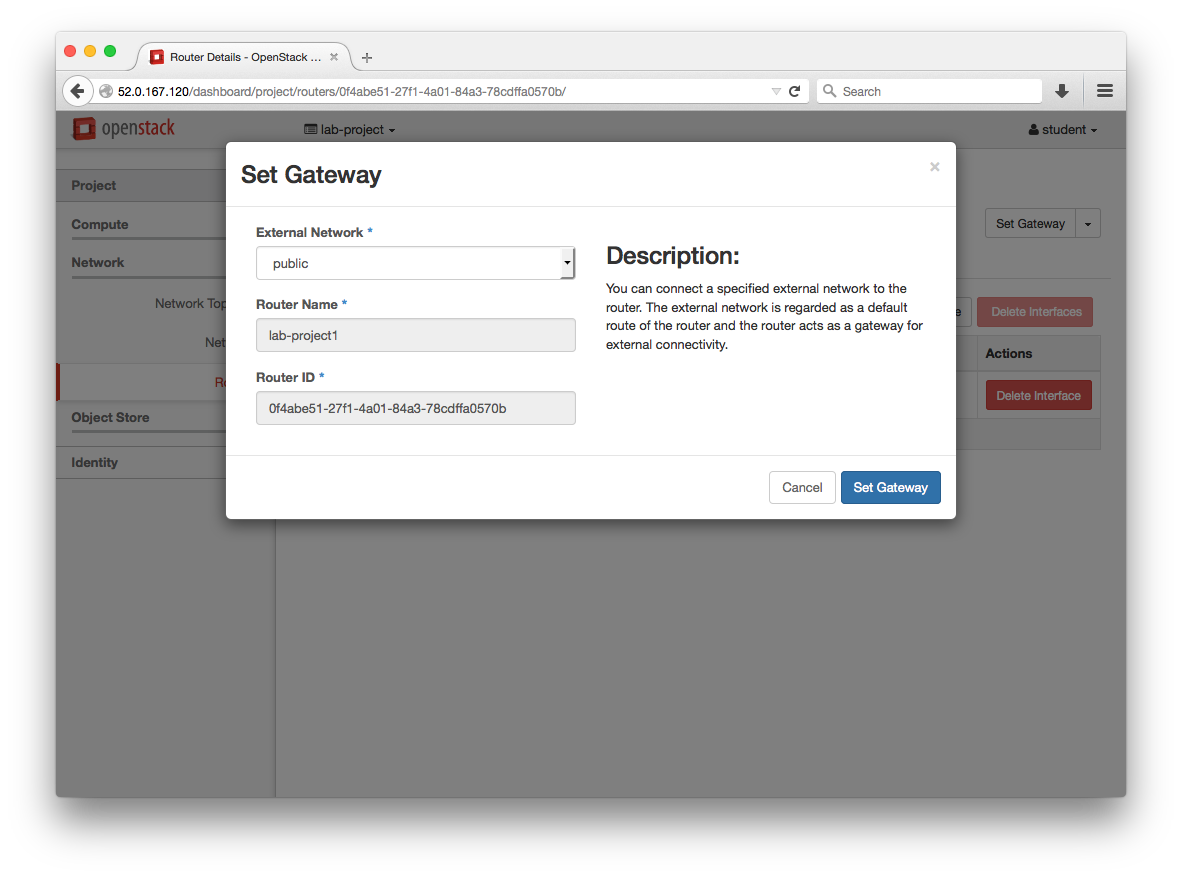

  4. Set the Gateway for this network

    Create Router Create Router

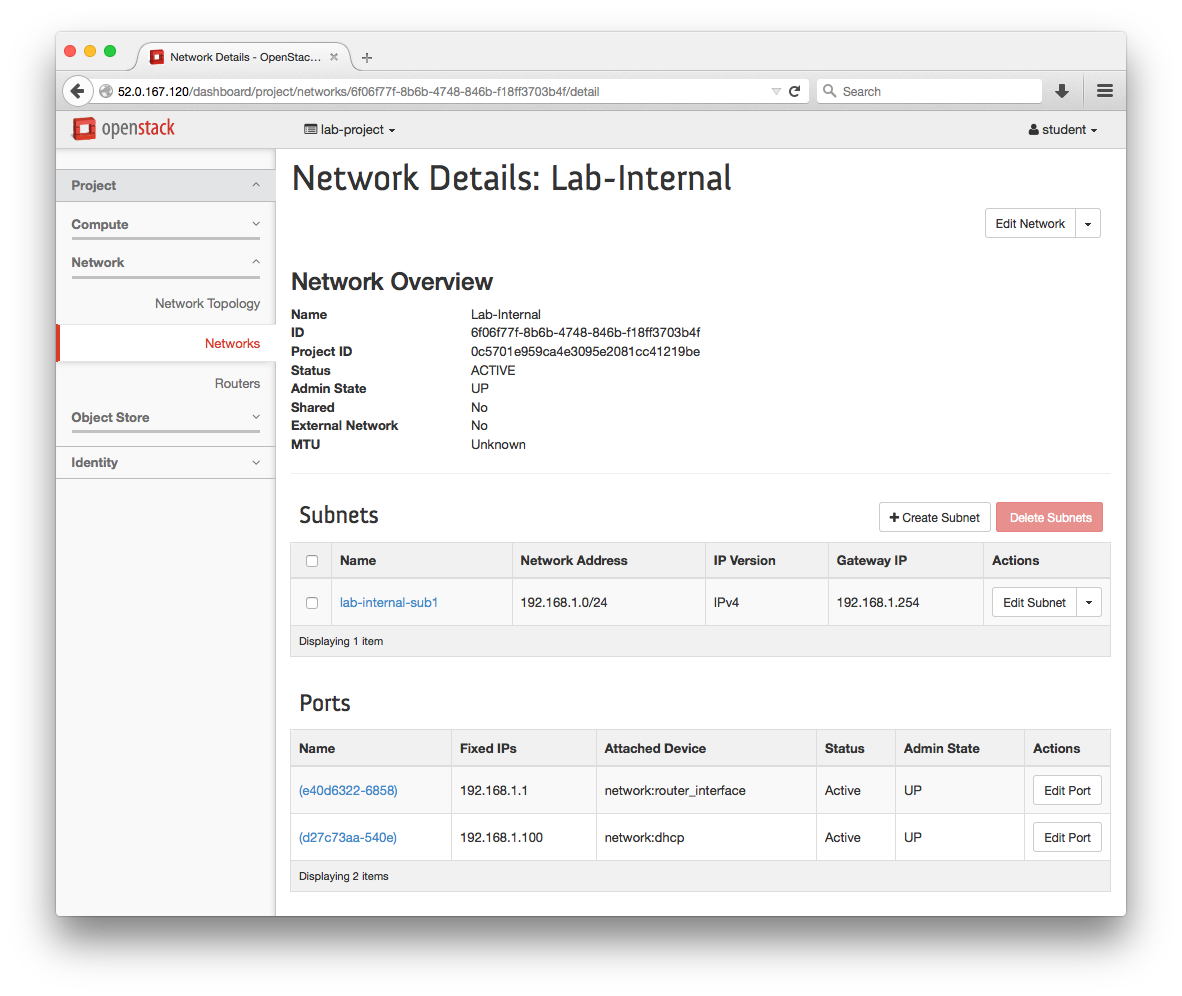

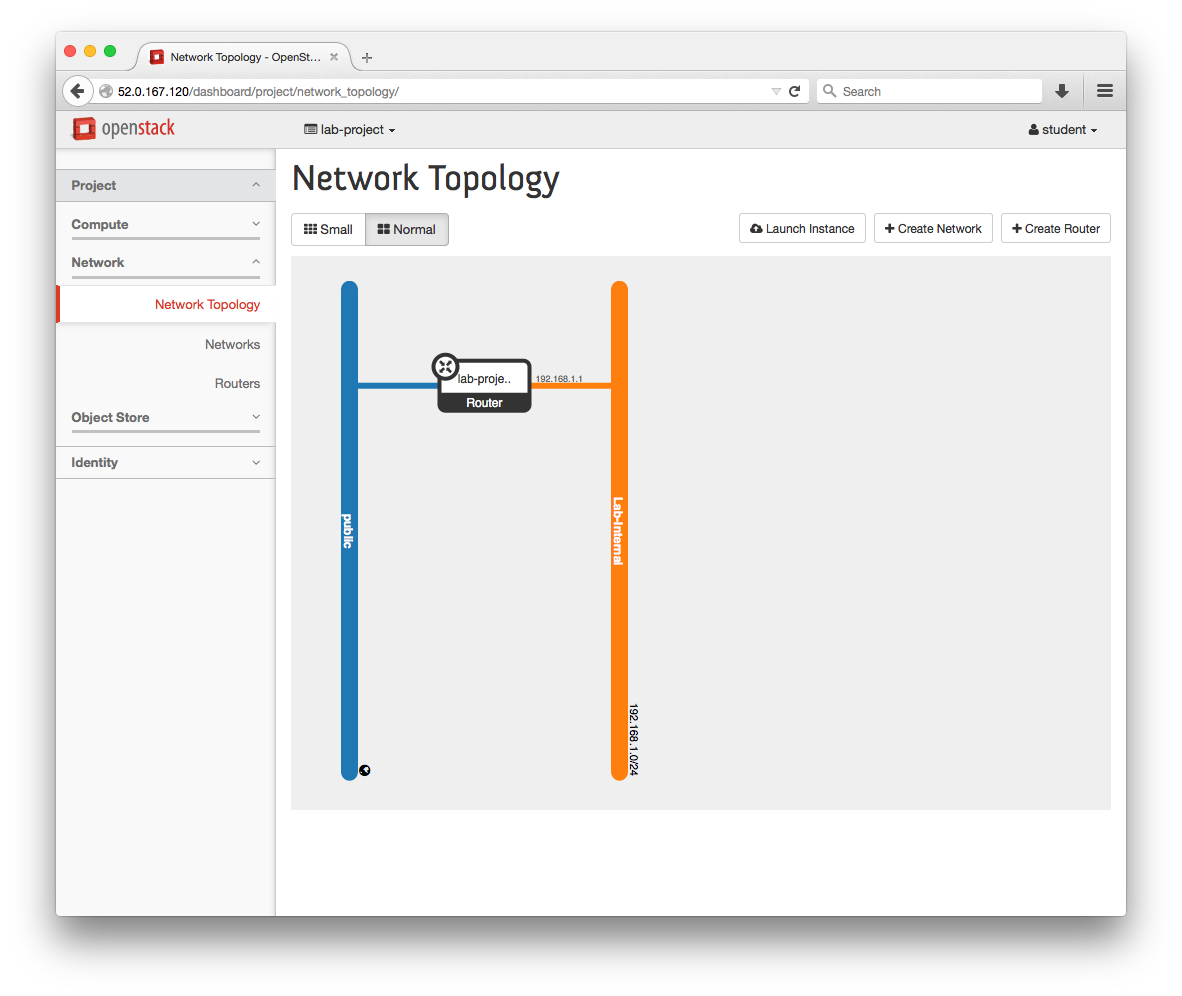

  5. View the Network Topology and Networks page and verify configurations

    Create Router Create Router

Continue to the next lab
